ARIIO-8100
● Fanless design, IP30● RK3399 processor, 2GB DDR3, 16GB eMMC● HDMI-4K output● 2.4GHz WiFI● 4G LTE● TYPE C, USB3.0, USB2.0● Android 7.1
￥ 0.00
0.00
Features
● Fanless design, IP30● RK3399 processor, 2GB DDR3, 16GB eMMC● HDMI-4K output● 2.4GHz WiFI● 4G LTE● TYPE C, USB3.0, USB2.0● Android 7.1
"},"1":{"title":"Product Spec","desc":"
System | ||
CPU | RK3399 | |
Memory | 2GB DDR3 （Up to 4GB） | |
Storage | 16GB eMMC 5.1（up to 64GB） | |

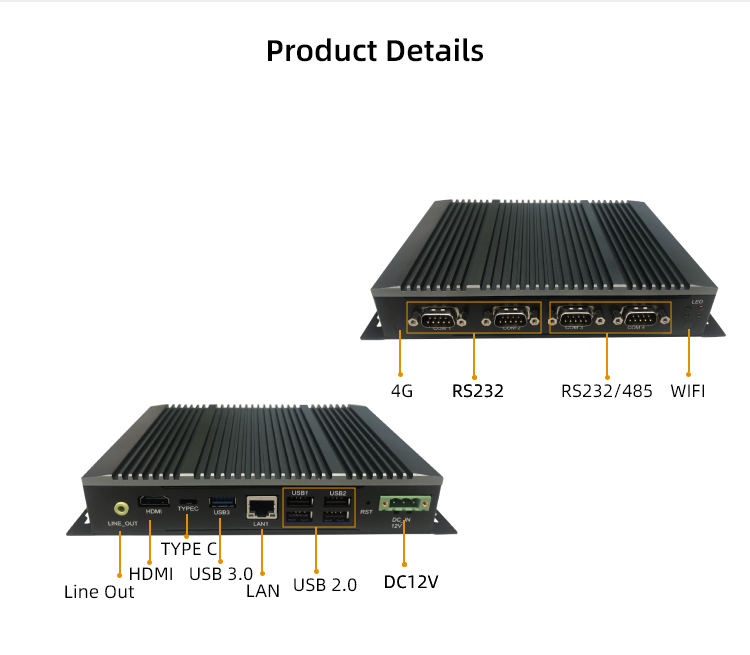

I/O | ||
Reset | reset IP | |
LAN | 1 x 10/100/1000Mbps -RJ45 | |
Serial Ports | 2 x RS232/RS485 DB9，2400~115200bits/s | |
USB | 1 x USB Type C, USB 3.0, DP | |
| HDMI | 1 x HDMI 4K | |
| SIM | 1.8V/3V SIM/UIM | |
| BT | V2.1+EDR/Bluetooth 3.0/3.0+HS/4.1/BLE | |
| Audio | 3.5mm line-out | |
| TF | 1 x TF slot | |
| Power connector | 1 x 3PIN，DC 12V | |
| LED indicator | 1 x power，1 x storage，2 x user-defined | |
Consumption | ||
| Consumption | Min：300mA/12V, MAX : 1A/12V | |
| Input | DC 12V | |
| Current | Min：300mA, MAX : 1A | |
Communication Consumption | 4G：1A/12V | |
Mechanical | ||
Dimensions(L*H*W) | 180mm*130mm *35mm | |
| Construction | Aluminum IP30 | |
Operating Temperature | -20~70°C | |
Storage Temperature | -40~85°C | |
Humidity | 10 to 90% | |
4G | ||
Band | FDD LTE：Band 1/3 ，Band 2/4/5/13/17/25 | |
| Speed | FDD LTE： Cat-12(download: 600Mbps，upload: 150Mbps)； Cat-6(download: 300Mbps，upload: 50Mbps)； Cat-4(download: 150Mbps，upload: 50Mbps)； TDD LTE(download: 61Mbps，upload: 18Mbps)； CDMA2000 1X EVDO Rev A (download: 3.1Mbps，upload: 1.8Mbps)； WCDMA(download: 42Mbps，upload: 5.76Mbps)； TD-SCDMA(download: 4.2Mbps，upload: 2.2Mbps)； | |
WIFI | ||
Band | 2.4GHz | |
| Protocol | 802.11ac/a/b/g/n； IEEE802.11b/g：up to 108Mbps； IEEE802.11n：up to 300Mbps； IEEE802.11ac：up to 780Mbps； | |
| Mode | AP | |
"}}
